Modelos KS

Estos equipos están fabricados con algunas partes en Acero Inoxidable, principalmente por donde pasa la masa en crudo como son: La Flecha, Soporte Central y Hélice de la Tolva de Aluminio Pulida, Base Superior con Cople y Cámara de Presión, así como Sinfines y Flechas Bayoneta de Base Inferior, Perfiladores y Mallas.

These machines are manufactured with some parts in Stainless Steel, mainly where the raw mass passes such as: The Axis, Central Support and Propeller of the Polished Aluminum Hopper, Upper Base with Cople and Pressure Chamber, as well as Augers and Bayonet axis of lower Base, Cotters and Meshes.

Modelo 30KS y Tipo Exportación

• Production capacity: 900 tortillas per hour (55 lbs. per hour. approx.)
• Speed and temperature regulator.
• Gas consumption: 0.81 M3 per hour 1 inch gas inlet.
• 77,760 BTU ́s per hour, at a maximum of 9 OZ of pressure.
• 1 Motor 1/2 HP (Motor and electric parts are NOM, UL, CE.)
• 1 Gear Motor 1/2 HP (Motor and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 0.57 Kw. per hour, 8.8 Amperes per phase.
• Measurements: 7.71 feet long, 2.95 feet wide, 5.74 feet tall.

Modelo 70KS y Tipo Exportación

• Production capacity: 2,100 tortillas per hour (155 lbs. per hour. approx.)
• Gas consumption: 4.151 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 146,603 BTU ́s per hour, 10 Oz. pressure.
• 2 Motors 2 HP. (Motor and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 2 Kw. per hour, 9.5 Amperes.
• Measurements: 10 feet long, 3.77 feet wide.

Modelo 100K - Tipo México

Not recommended for the american market.

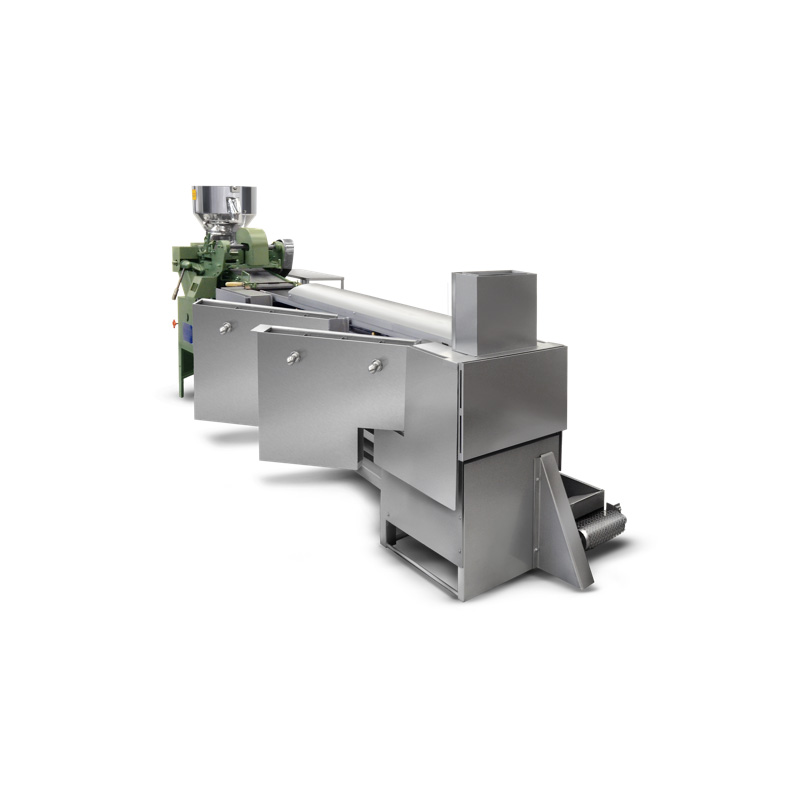

Modelo 100KS y Tipo Exportación

Available and recommended for the american market.

With Stainless Still Hooper Kit and Lids set.

• Production capacity: 3,000 tortillas per hour (220 lbs. per hour. approx.)
• Gas consumption: 5.240 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 185,069 BTU ́s per hour, 10 Oz. pressure.
• 2 Motors 2 HP (Motors and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 2 Kw. per hour, 9.5 Amperes per phase.
• Measurements: 13.51 feet long, 3.77 feet wide.

Modelo 130KS y Tipo Exportación

• Production capacity: 4,000 tortillas per hour (220 lbs. per hour. approx.)
• Gas consumption: 5.240 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 185,069 BTU ́s per hour, 10 Oz. pressure.
• 2 Motors 2 HP (Motors and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 2 Kw. per hour, 9.5 Amperes per phase.
• Measurements: 13.51 feet long, 3.77 feet wide.

Modelo 200KS y Tipo Exportación

• Production capacity: 6,000 tortillas per hour (440 lbs. per hour. approx.)
• Gas consumption: 8.008 M3 per hour (Natural gas) 1 Inch Gas inlet.
• 282,804 BTU ́s per hour, 10 Oz. pressure.
• 1 Motor 2 HP.& 1 Motor 3 HP. (Motors and electric parts are NOM, UL, CE.)
• Amperage: 220V-60Hz Biphasic (two phases.)
• Electricity consumption: 4.2 Kw. per hour, 12 Amperes per phase.
• Measurements: 13.61 feet long, 5.28 feet wide.

Nota:

Al menos tiene que dejar una yarda alrededor de la máquina para limpieza y mantenimiento.

At least you must leave one yard all around the machine for cleaning and maintenance.
